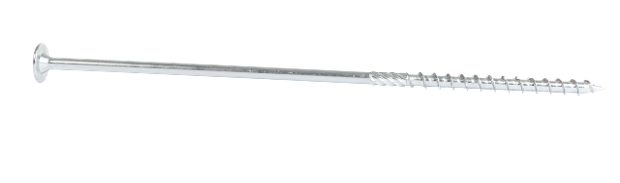

Wood construction screw, flange head, partial thread, clear zinc, torx

Specifikáció

Azonosítás

Article number

HBS-60100-FH30

GTIN

8715274237510

Műszaki specifikáció

Wire material

Carbon steel standard tensile

A rögzítőelemek specifikációi

Finish

Clear zinc

Application environment

Indoor

Point type

Type 17 cut point

Screw head type

Flange head

Screw recess

Torx 30

Screw thread type

Partly threaded with shank ribs

Screw length

100.0 mm

Screw diameter

6.0 mm

CE specifikációk

Characteristic head pull through parameter

14.0 N/mm²

CE fastener type

Wood construction screw

DOP No

HBS-60100-FH30

Material notification on CE label

Carbon Steel

Protection level in micron

≤5

Service class

2

Threaded/profiled length

60.0 mm

Characteristic yield moment

9.5 Nmm

Characteristic torsional resistance

1.5 Nm

Characteristic torsional strength

11.0 Nm

Characteristic withdrawal parameter

11.0 N/mm²

Nem műszaki specifikáció

Package quantity

100

Logisztikai előírások

Net weight

1.24 kg
